Development Kits for Bio-module: M001A

A completed Bio-sensor project including software and hardware solutions, to make an all-in-one,including ECG, RESP, GSR ,HR, PPG, HCM, SPO2, BIA and Motion etc.
kits

To provide system solutions and Turnkey projects, reducing customer development time and making an ideal option for health-monitoring, wearable devices.

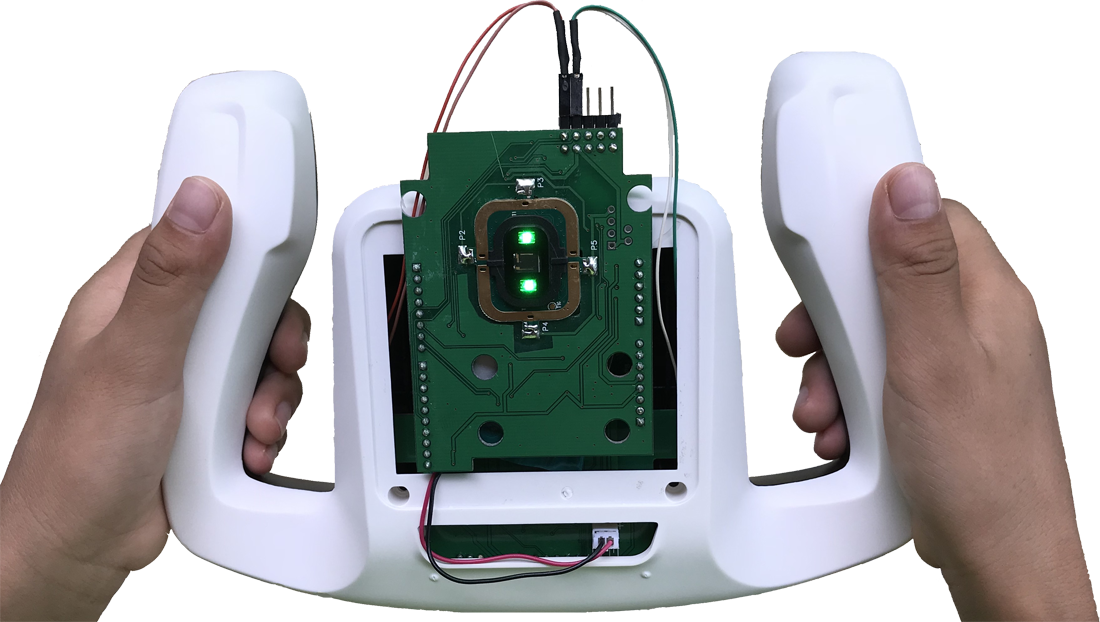

The evaluation board includes a handheld cases with 4 electrodes, a motherboard with Bluetooth ble chipset, and a module pin-board; and software includes Bluetooth BLE firmware, desktop evaluation tool and mobile APP.

Evaluation board

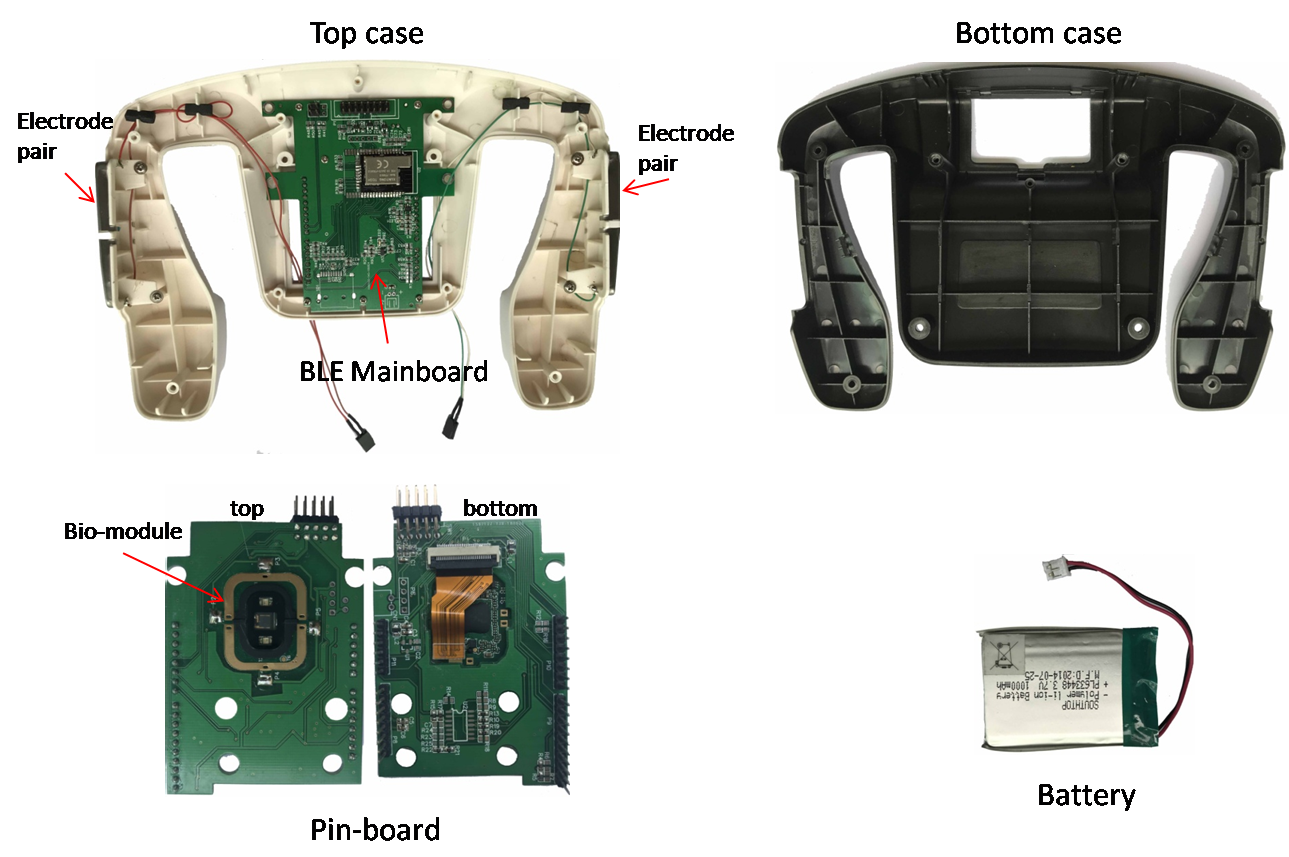

As shown in the following figure, the evaluation board consists of cases, a Bluetooth motherboard, a pin-board (with bio-module), and a battery.

disassembly

Sensors

limb electrode

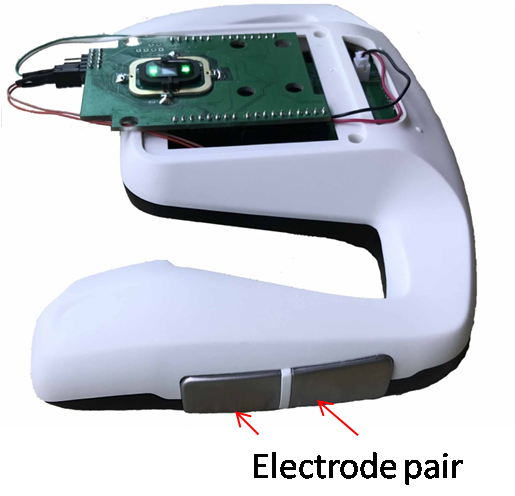

Two pairs of source/drive electrodes are attached to the cases of the evaluation board, which are mounted on two symmetrical left and right handles; As shown in the following side-view figure, they are used to measure body electrical and impedance activities.
Side_view

PPG sensor

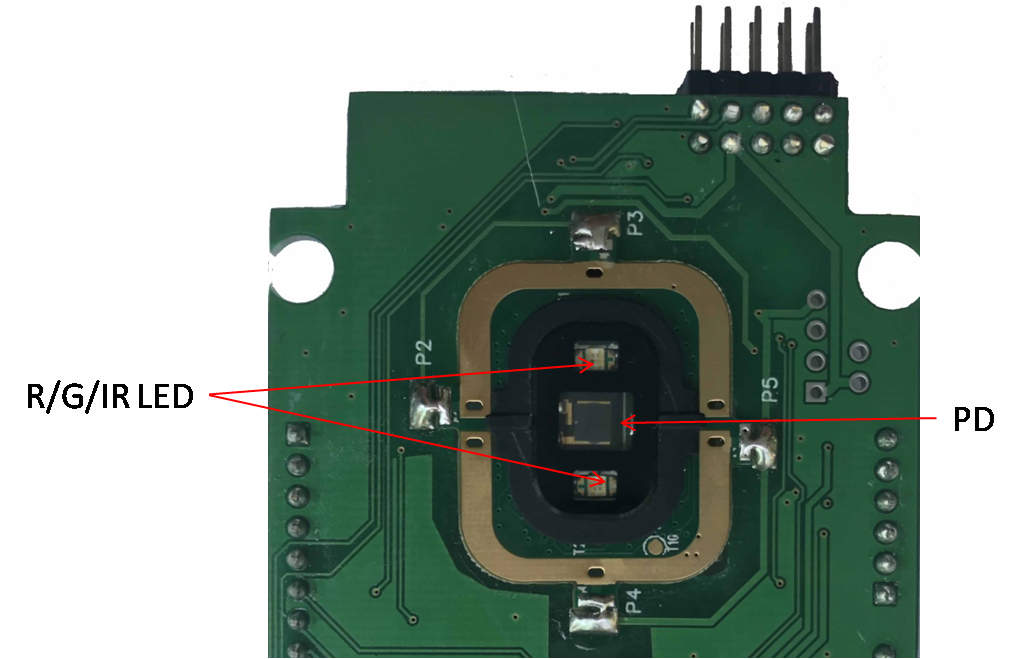

The Bio-module is on-board, the pulse wave (PPG) sensing section contains a pair of red/green/IR led and multi-wavelength photodiode(PD); As shown in the following figure, used for PPG-related applications.
sensor

Gsensor

Built-in 14 bits 3-axis Gsensor, range + 2G, + 4G, + 8g, + 16g;

RESOURCES

Contact

If you have technical problems and ideas to communicate with us, you can contact us by Email: fanfeiwu@gmail.com, QQ: 4646079

Shopping

Do you want to buy the Evaluation board for Bio-sensor(M001A)?Services for global users:








Scritto il | Edited on

Bio-sensor–M001A

Bio-M001A is a Bio-module in healthcare;The Bio-module measures and transfers various types of bio-data including ECG, RESP, GSR, HR, PPG, HCM and BIA etc, integrated Bio-Processor with Analog Front-End to make an all-in-one health monitoring solution.

The algorithm core runs in Bio-Processor,including SPO2,motion recognition,dynamic heart rate monitoring, trend analysis of blood pressure, Emotional and mental stress etc.

M001A

The Bio-module integrates red (660 nm), green (520 nm) and infrared (940 nm) three-color LED and photodiode(PD) sensor to realize PPG-related applications; and supports four electrodes to achieve applications with human electrical activities and impedance activities; on-module 14-bit three-axis Gsensor for motion/sleep applications.

The Bio-module hardware interface supports SPI/I2C/UART optional, FPC connector reference DF37NB-30DS-0.4V.

FEATURES

Single lead ECG :

  • 3 electrodes with right leg driver;
  • Lead-off detect;

    Bio-impedance with 4 electrodes:

  • Built-in DAC and multi-frequency waveform generator;
  • Support RESP,BIA and GSR etc;

    PPG:

  • on-module red (660 nm), green (520 nm) and infrared (940 nm) LED and PD;
  • Support HR,SPO2 and Bio-assay etc;

    Electrodes mean interface:

  • Support electrodes as input keypad;
  • Support pair of electrodes as data channel: eg,USB/UART etc;
  • Support pair of electrodes as power charger channel;

Gsensor:

  • Built-in 14 bits 3-axis Gsensor, range + 2G, + 4G, + 8g, + 16g;
  • Pedometer,Action recognition;

Hardware interface:

Small size, suitable for wristband devices:

  • 22x26mm;

APPLICATIONS

  1. Fitness,wristband devices;
  2. Healthcare devices;
  3. Mobile devices and robots etc;
